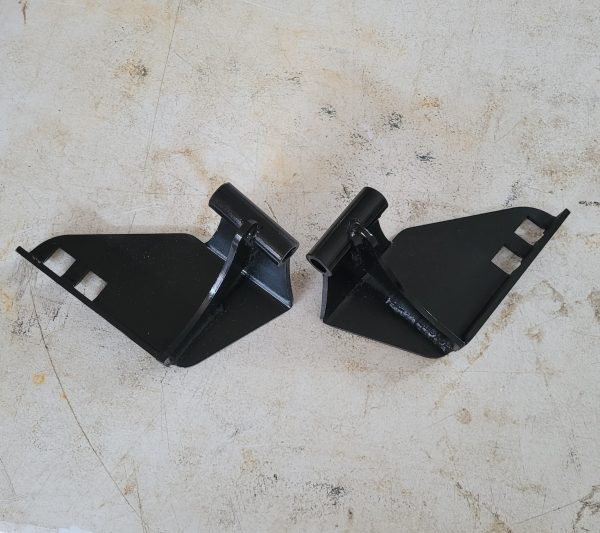

V-8 Engine Frame Brackets for 1949-1954 Chevy Passenger Car


Get the best  fit with Walton Fabrication’s V-8 weld on engine brackets. These brackets mount your engine with the proper distributor clearance for the firewall.

SKU: 45-7112-1 Categories: , Tags: , , , ,


Cut the time to install your V-8 engine with these easy to install engine brackets.   Locates using two stock mounting holes for the front suspension.   Once located on the frame with the easy instructions, just a final weld and drop the engine in.  No hoist required to hang the engine and locate these mounts.

These mounts are specifically designed for your 1949-54 Chevy passenger car to install the ever popular small block Chevy V-8 engine.    These give the proper clearance for your steering pitman arm, some trimming of the two vertical firewall supports  is required.   Recommend  Sanderson CC50 headers or 1996  Chevy Camaro  rear dump stock exhaust manifold.

Additional information

Weight 6 lbs
Dimensions 12 × 9 × 6 in
Year Make Model
Year Make Model
1949 - 1954 Chevrolet Passenger Car
